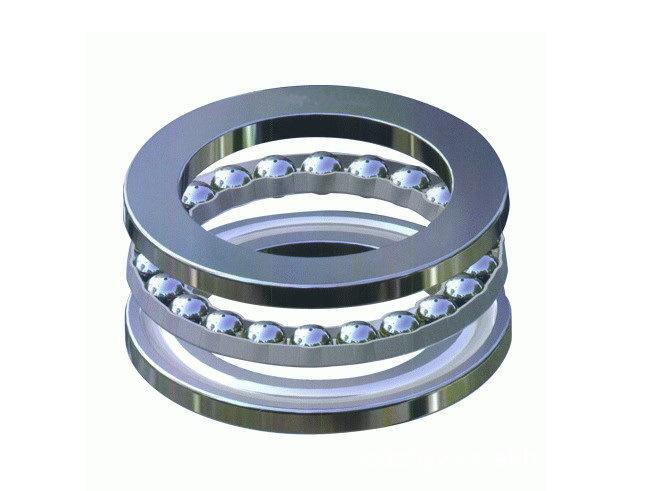

59176 F-Thrust ball bearing
Date:2022-05-31 Editor:Oukai Bearing
#
  • #
  • #

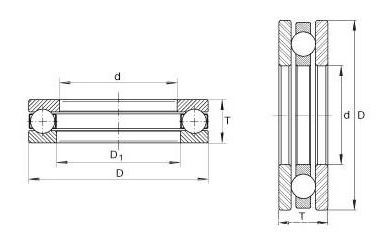

Main Dimensions & Performance Data

d

380 mm

D

460 mm

B

48 mm

Cr

255 rpm

Cor

1530 rpm

Fatigue load

28 pu

Reference speed

850 rpm

limit speed

1200 rpm

Type

Thrust ball bearing

Purpose of 59176 F thrust ball bearing: it is only applicable to the parts bearing axial load on one side and with low speed, such as crane hook, vertical water pump, vertical centrifuge, Jack, low-speed reducer, etc. The shaft ring, seat ring and rolling element of the bearing are separated and can be installed and removed separately.
