BA 3-Thrust ball bearing
Date:2022-05-31 Editor:Oukai Bearing
#
  • #
  • #

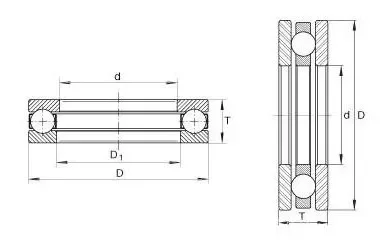

Main Dimensions & Performance Data

d

3 mm

D

8 mm

B

3.5 mm

Cr

0.806 rpm

Cor

0.72 rpm

Fatigue load

0.027 pu

Reference speed

26000 rpm

limit speed

36000 rpm

Type

Thrust ball bearing

Purpose of BA 3 thrust ball bearing: it is only applicable to the parts bearing axial load on one side and with low speed, such as crane hook, vertical water pump, vertical centrifuge, Jack, low-speed reducer, etc. The shaft ring, seat ring and rolling element of the bearing are separated and can be installed and removed separately.
